DataSheet

50HZ

60HZ

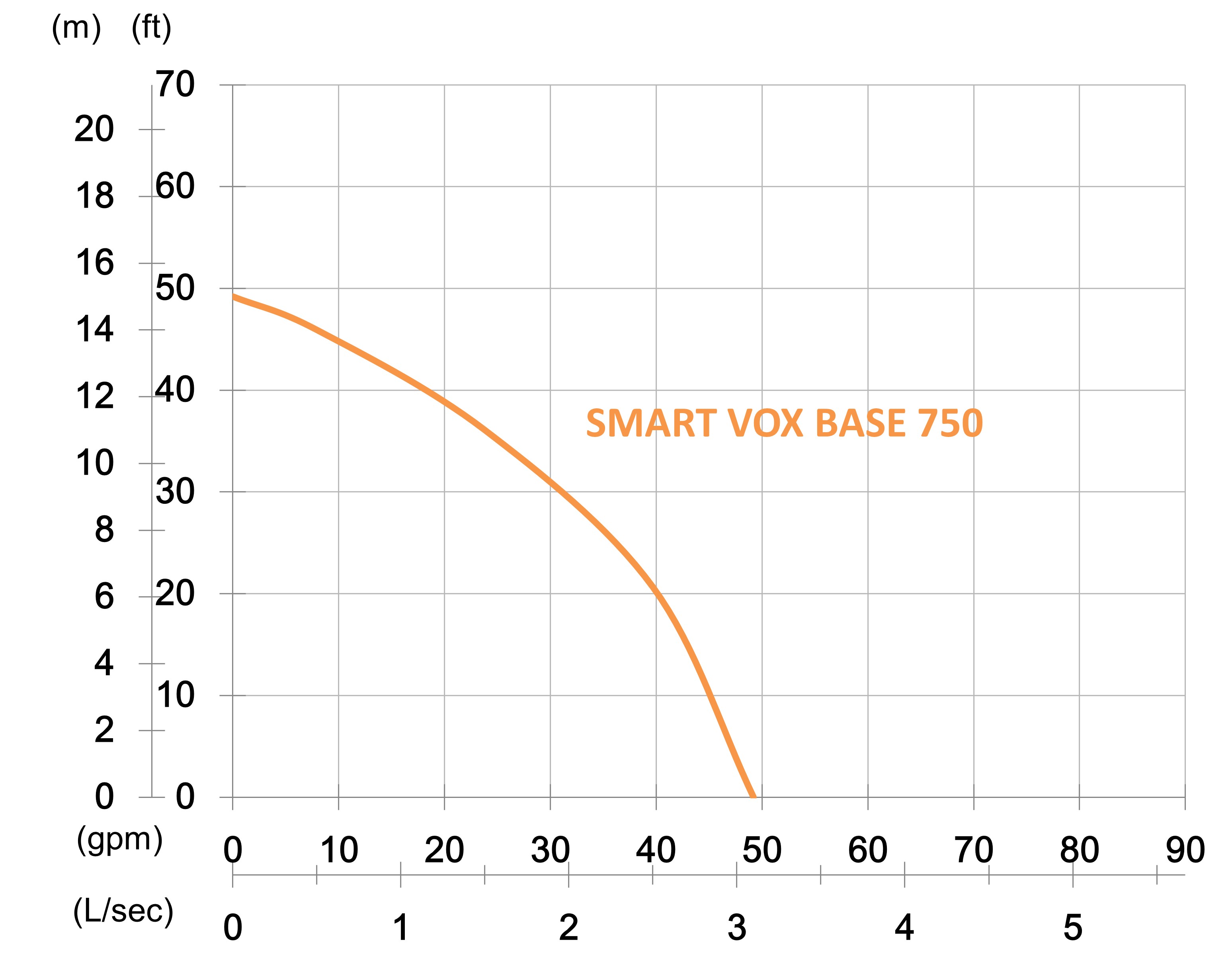

　 SMART VOX BASE 750
Discharge Outlet 50 mm (2")
Shaft Speed 2850 rpm
Rated Output 0.75 kW (1 HP)
Rated Head 11 m (36')
Rated Flow 1.5 L/s (24 gpm)
Max Head 15 m (49')
Max Flow 3.1 L/s (49 gpm)
Solid Passage 2 mm (0.1")
Diameter 252 mm (9.9")
Height 370 mm (14.6")
Weight 12.8 kg (28 lbs)
　 SMART VOX BASE 750
Discharge Outlet 50 mm (2")
Shaft Speed 3450 rpm
Rated Output 0.75 kW (1 HP)
Rated Head 10 m (33')
Rated Flow 1.25 L/s (20 gpm)
Max Head 14 m (46')
Max Flow 3 L/s (48 gpm)
Solid Passage 2 mm (0.1")
Diameter 252 mm (9.9")
Height 370 mm (14.6")
Weight 12.8 kg (28 lbs)
