GOSPIN 8

DataSheet

50Hz
　 GOSPIN 208 GOSPIN 308
Discharge Outlet 50 mm (2") 80 mm (3")
Shaft Speed 2850 rpm 2850 rpm
Rated Output 0.75 kW (1 HP) 0.75 kW (1 HP)

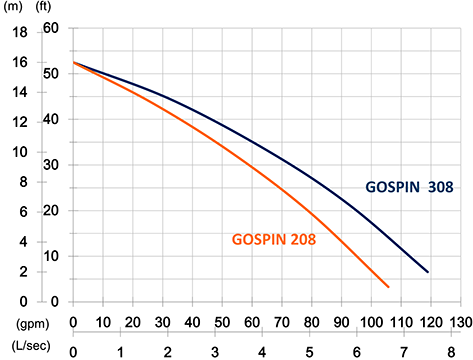

Rated Head 10 m (33') 10 m (33')
Rated Flow 3.3 L/s (53 gpm) 4.2 L/s (66 gpm)
Max Head 16 m (52') 16 m (52')
Max Flow 6.7 L/s (106 gpm) 7.5 L/s (119 gpm)
Solid Passage 5.5 mm (0.2") 5.5 mm (0.2")
Diameter 267 mm (10.5") 281 mm (11.1")
Height 438 mm (17.2") 438 mm (17.2")
Weight 21 kg (46 lbs) 21 kg (46 lbs)
60Hz
　 GOSPIN 208 GOSPIN 308
Discharge Outlet 50 mm (2") 80 mm (3")
Shaft Speed 3450 rpm 3450 rpm
Rated Output 0.75 kW (1 HP) 0.75 kW (1 HP)
Rated Head 10 m (33') 10 m (33')
Rated Flow 3.3 L/s (53 gpm) 4.2 L/s (66 gpm)
Max Head 16 m (52') 16 m (52')
Max Flow 6.7 L/s (106 gpm) 7.5 L/s (119 gpm)
Solid Passage 5.5 mm (0.2") 5.5 mm (0.2")
Diameter 267 mm (10.5") 281 mm (11.1")
Height 438 mm (17.2") 438 mm (17.2")
Weight 21 kg (46 lbs) 21 kg (46 lbs)

Download File

Brochure - Sewage Pumps 50 Hz 60 Hz
Datasheet - GOSPIN 208 50 Hz 60 Hz
Datasheet - GOSPIN 308 50 Hz 60 Hz

Specifications

Type Electric Submersible Pumps
Phase 1-Phase，3-Phase
Classification IP 68
Motor
　•　Type Induction Motor
　•　Poles 2 Pole
　•　Insulation Class F
　•　Protector Circle Thermal Protector
　•　Start Method 1-Phase • Capacitor-Run，3-Phase • D.O.L.
Lubricant Food Grade (ISO VG32)
Shaft Seal
　•　Type Double Mechanical Seal
　•　Desc. Silicon Carbide VS Ceramic / Carbon
Impeller Type Semi-Open
Bearings C3 Shielded ball bearings
Cable
　•　Type PVC (CSA Certified) / H07RN-F
　•　Length 6m (20') or longer upon request.
Materials
　•　Pump Casing Gray Iron
　•　Impeller Gray Iron
　•　Motor Frame Gray Iron
　•　Motor Shaft Stainless Steel
　•　Strainer Stainless Steel
Max. Liquid Temp. 40˚C (104˚F)
Max. Sub. Depth 20m (66")
pH Range pH 5 - pH 8
