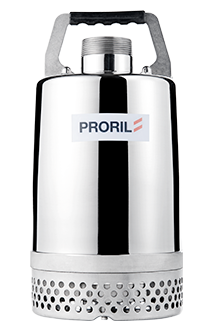

X-SMART 750
- • X-SMART 750
- • Output：0.75kW / 1HP
- • Outlet：2"
X-SMART series pumps are designed for handling clean water or screened wastewater. The high quality and innovative design has proven to be highly reliable and durable for trouble-free performance.
Frequency
Performance Curve
Model Comparison
X-SMART 750 Datasheet | |
|---|---|
| Discharge Outlet | 50 mm (2") |
| Shaft Speed | 2850 rpm |
| Rated Output | 0.75 kW (1 HP) |
| Rated Head | 10 m (33') |
| Rated Flow | 3.3 L/s (53 gpm) |
| Max Head | 15 m (49') |
| Max Flow | 5.3 L/s (84 gpm) |
| Solid Passage | 7 mm (0.3") |
| Diameter | 180 mm (7.1") |
| Height | 361 mm (14.2") |
| Weight | 14 kg (31 lbs) |
