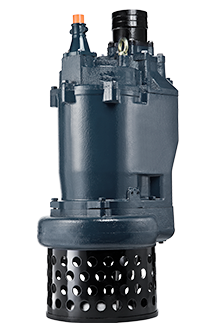

TITAN 220
- • TITAN 6220 / 8220
- • Output：22kW / 30HP
- • Outlet：6"，8"
The 4 pole motor and whole cast iron design features a simple, robust structure that provides exceptional durability and impact resistance against rough conditions.
Frequency
Performance Curve
Model Comparison
TITAN 6220 Datasheet | TITAN 8220 Datasheet | |
|---|---|---|
| Discharge Outlet | 150 mm (6") | 200 mm (8") |
| Shaft Speed | 1450 rpm | 1450 rpm |
| Rated Output | 22 kW (30 HP) | 22 kW (30 HP) |
| Rated Head | 24 m (79') | 18 m (59') |
| Rated Flow | 46.6 L/s (739 gpm) | 63.3 L/s (1003 gpm) |
| Max Head | 30 m (98') | 24 m (79') |
| Max Flow | 83.3 L/s (1320 gpm) | 108.3 L/s (1716 gpm) |
| Solid Passage | 35 mm (1.4") | 35 mm (1.4") |
| Diameter | 592 mm (23.3") | 592 mm (23.3") |
| Height | 1210 mm (47.6") | 1172 mm (46.1") |
| Weight | 350 kg (772 lbs) | 360 kg (794 lbs) |
