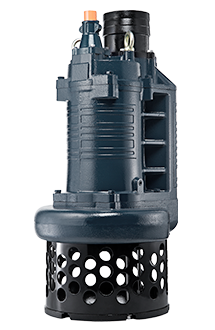

TITAN 150
- • TITAN 6150 / 6150L
- • Output：15kW / 20HP
- • Outlet：6"
The 4 pole motor and whole cast iron design features a simple, robust structure that provides exceptional durability and impact resistance against rough conditions.
Frequency
Performance Curve
Model Comparison
TITAN 6150 Datasheet | TITAN 6150L Datasheet | |
|---|---|---|
| Discharge Outlet | 150 mm (6") | 150 mm (6") |
| Shaft Speed | 1450 rpm | 1450 rpm |
| Rated Output | 15 kW (20 HP) | 15 kW (20 HP) |
| Rated Head | 20 m (66') | 16 m (52') |
| Rated Flow | 35 L/s (554 gpm) | 50 L/s (792 gpm) |
| Max Head | 30.5 m (100') | 23 m (75') |
| Max Flow | 71.6 L/s (1135 gpm) | 91.6 L/s (1452 gpm) |
| Solid Passage | 35 mm (1.4") | 35 mm (1.4") |
| Diameter | 479 mm (18.9") | 479 mm (18.9") |
| Height | 922 mm (36.3") | 922 mm (36.3") |
| Weight | 204 kg (450 lbs) | 204 kg (450 lbs) |
