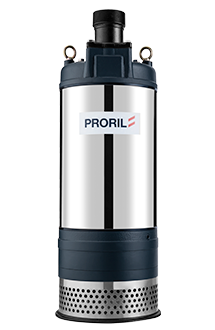

TANK SLIM 380
- • TANK SLIM 380
- • Output：8kW / 11HP
- • Outlet：3"
With a compact, slim design and the patented ACrS technology, these wear-resistant, portable dewatering pumps provide reliable and economical solutions.
Frequency
Performance Curve
Model Comparison
TANK SLIM 380 Datasheet | |
|---|---|
| Discharge Outlet | 80 mm (3") |
| Shaft Speed | 2860 rpm |
| Rated Output | 8 kW (11 HP) |
| Rated Head | 40 m (131') |
| Rated Flow | 10 L/s (158 gpm) |
| Max Head | 65 m (213') |
| Max Flow | 18.3 L/s (290 gpm) |
| Solid Passage | 8 mm (0.3") |
| Diameter | 283 mm (11.1") |
| Height | 798 mm (31.4") |
| Weight | 92 kg (203 lbs) |
