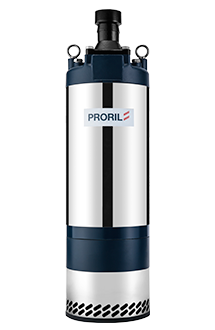

TANK SLIM 230
- • TANK SLIM 230
- • Output：3kW / 4HP
- • Outlet：2"
With a compact, slim design and the patented ACrS technology, these wear-resistant, portable dewatering pumps provide reliable and economical solutions.
Frequency
Performance Curve
Model Comparison
TANK SLIM 230 Datasheet | |
|---|---|
| Discharge Outlet | 50 mm (2") |
| Shaft Speed | 2850 rpm |
| Rated Output | 3 kW (4 HP) |
| Rated Head | 30 m (98') |
| Rated Flow | 3.3 L/s (53 gpm) |
| Max Head | 35 m (115') |
| Max Flow | 8.3 L/s (132 gpm) |
| Solid Passage | 7 mm (0.3") |
| Diameter | 188 mm (7.4") |
| Height | 659 mm (25.9") |
| Weight | 45 kg (99 lbs) |
