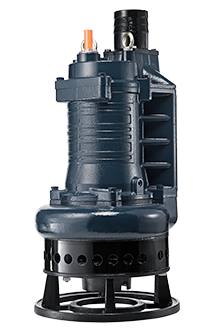

STORMY 75P
- • STORMY 475P
- • Output：7.5kW / 10HP
- • Outlet：4"
Rugged, reliable and cost effective, the STORMY-P series pumps come complete with patented high chrome impellers, agitators, and wear plates to withstand tough slurry transportation.
Frequency
Performance Curve
Model Comparison
STORMY 475P Datasheet | |
|---|---|
| Discharge Outlet | 100 mm (4") |
| Shaft Speed | 1450 rpm |
| Rated Output | 7.5 kW (10 HP) |
| Rated Head | 14 m (46') |
| Rated Flow | 20 L/s (317 gpm) |
| Max Head | 18.5 m (61') |
| Max Flow | 41.3 L/s (655 gpm) |
| Solid Passage | 25 mm (1") |
| Diameter | 420 mm (16.5") |
| Height | 826 mm (32.5") |
| Weight | 124 kg (273 lbs) |
