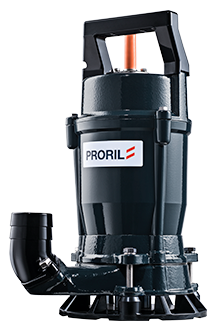

SMART VOX BASE 750
- • SMART VOX BASE 750
- • Output: 0.75kW / 1HP
- • Outlet: 2"
SMART VOX BASE 750, a lightweight residue pump, can pump down to an extremely low water level at 1/16" (2mm). Ideal for pumping flat surface such as basements, parking garages, pools, spas and etc.
Frequency
Performance Curve
Model Comparison
SMART VOX BASE 750 Datasheet | |
|---|---|
| Discharge Outlet | 50 mm (2") |
| Shaft Speed | 2850 rpm |
| Rated Output | 0.75 kW (1 HP) |
| Rated Head | 11 m (36') |
| Rated Flow | 1.5 L/s (24 gpm) |
| Max Head | 15 m (49') |
| Max Flow | 3.1 L/s (49 gpm) |
| Solid Passage | 2 mm (0.1") |
| Diameter | 252 mm (9.9") |
| Height | 370 mm (14.6") |
| Weight | 12.8 kg (28 lbs) |
