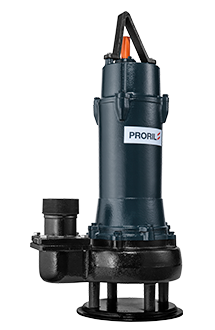

GOVOX-U 22
- • GOVOX-U 322
- • Output：2.2kW / 3HP
- • Outlet：3"
GOVOX series pumps feature a less impeller wear and longer pump life by a vortex flow that allows fibrous materials and solid matters to be pumped out without obstruction.
Frequency
Performance Curve
Model Comparison
GOVOX-U 322 Datasheet | |
|---|---|
| Discharge Outlet | 80 mm (3") |
| Shaft Speed | 2850 rpm |
| Rated Output | 2.2 kW (3 HP) |
| Rated Head | 12 m (39') |
| Rated Flow | 6 L/s(95 gpm) |
| Max Head | 17 m (56') |
| Max Flow | 14.2 L/s (224 gpm) |
| Solid Passage | 55 mm (2.2") |
| Diameter | 366 mm (14.4") |
| Height | 660 mm (26") |
| Weight | 40 kg (88 lbs) |
