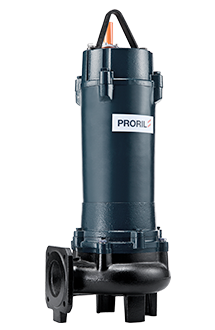

GOVOX-G 75
- • GOVOX-G 475
- • Output：7.5kW / 10HP
- • Outlet：4"
GOVOX series pumps feature a less impeller wear and longer pump life by a vortex flow that allows fibrous materials and solid matters to be pumped out without obstruction.
Frequency
Performance Curve
Model Comparison
GOVOX-G 475 Datasheet | |
|---|---|
| Discharge Outlet | 100 mm (4") |
| Shaft Speed | 2850 rpm |
| Rated Output | 7.5 kW (10 HP) |
| Rated Head | 20 m (66') |
| Rated Flow | 13.3 L/s (211 gpm) |
| Max Head | 34 m (112') |
| Max Flow | 25 L/s (396 gpm) |
| Solid Passage | 52 mm (2") |
| Diameter | 464 mm (18.3") |
| Height | 717 mm (28.2") |
| Weight | 75 kg (165 lbs) |
