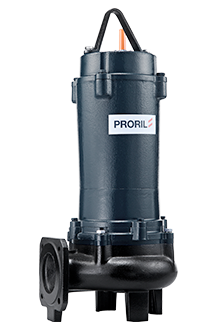

GOVOX-G 22
- • GOVOX-G 322
- • Output：2.2kW / 3HP
- • Outlet：3"
GOVOX series pumps feature a less impeller wear and longer pump life by a vortex flow that allows fibrous materials and solid matters to be pumped out without obstruction.
Frequency
Performance Curve
Model Comparison
GOVOX-G 322 Datasheet | |
|---|---|
| Discharge Outlet | 80 mm (3") |
| Shaft Speed | 2850 rpm |
| Rated Output | 2.2 kW (3 HP) |
| Rated Head | 12 m (39') |
| Rated Flow | 8.3 L/s (132 gpm) |
| Max Head | 15.5 m (51') |
| Max Flow | 15.8 L/s (251 gpm) |
| Solid Passage | 52 mm (2") |
| Diameter | 464 mm (18.3") |
| Height | 643 mm (25.3") |
| Weight | 60 kg (132 lbs) |
Product Catalogue
The complete catalogue covering the full PRORIL product range, ideal for a quick overview of every product line.
View All DocumentsNot sure which model to choose?
Enter your flow and head requirements and let the pump selector find the best-fit model for you.
