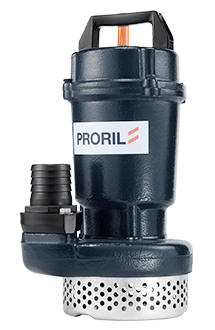

GOSPIN 4
- • GOSPIN 204
- • Output：0.4kW / 0.5HP
- • Outlet：2"
GOSPIN series pumps offer top quality and high performance in various effluent pumping applications.
Frequency
Performance Curve
Model Comparison
GOSPIN 204 Datasheet | |
|---|---|
| Discharge Outlet | 50 mm (2") |
| Shaft Speed | 2850 rpm |
| Rated Output | 0.4 kW (0.5 HP) |
| Rated Head | 8 m (26') |
| Rated Flow | 2.2 L/s (34 gpm) |
| Max Head | 11 m (36') |
| Max Flow | 5 L/s (79 gpm) |
| Solid Passage | 5.5 mm (0.2") |
| Diameter | 245 mm (9.6") |
| Height | 376 mm (14.8") |
| Weight | 16 kg (35 lbs) |
