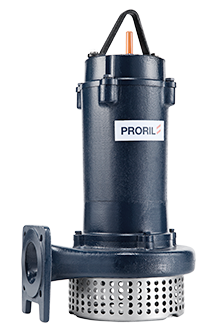

GOSPIN 22
- • GOSPIN 322
- • Output：2.2kW / 3HP
- • Outlet：3"
GOSPIN series pumps offer top quality and high performance in various effluent pumping applications.
Frequency
Performance Curve
Model Comparison
GOSPIN 322 Datasheet | |
|---|---|
| Discharge Outlet | 80 mm (3") |
| Shaft Speed | 2850 rpm |
| Rated Output | 2.2 kW (3 HP) |
| Rated Head | 10 m (33') |
| Rated Flow | 10 L/s (158 gpm) |
| Max Head | 21 m (69') |
| Max Flow | 13.3 L/s (211 gpm) |
| Solid Passage | 9 mm (0.4") |
| Diameter | 522 mm (20.6") |
| Height | 613 mm (24.1") |
| Weight | 51 kg (112 lbs) |
Product Catalogue
The complete catalogue covering the full PRORIL product range, ideal for a quick overview of every product line.
View All DocumentsNot sure which model to choose?
Enter your flow and head requirements and let the pump selector find the best-fit model for you.
