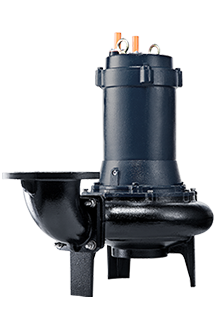

GOMAX 110
- • GOMAX 4110 / 6110
- • Output：11kW / 15HP
- • Outlet：4"， 6"
Designed for passing 76mm diameter solids without clogging, GOMAX series pumps are suitable for commercial and industrial wastewater applications.
Frequency
Performance Curve
Model Comparison
GOMAX 4110 Datasheet | GOMAX 6110 Datasheet | |
|---|---|---|
| Discharge Outlet | 100 mm (4") | 150 mm (6") |
| Shaft Speed | 1450 rpm | 1450 rpm |
| Rated Output | 11 kW (15 HP) | 11 kW (15 HP) |
| Rated Head | 22 m (72') | 17 m (56') |
| Rated Flow | 25 L/s (396 gpm) | 40 L/s (634 gpm) |
| Max Head | 30 m (98') | 30 m (98') |
| Max Flow | 53.3 L/s (845 gpm) | 75 L/s (1188 gpm) |
| Solid Passage | 76 mm (3") | 76 mm (3") |
| Diameter | 753 mm (29.6") | 813 mm (32") |
| Height | 830 mm (32.7") | 830 mm (32.7") |
| Weight | 167 kg (368 lbs) | 175 kg (386 lbs) |
Product Catalogue
The complete catalogue covering the full PRORIL product range, ideal for a quick overview of every product line.
View All DocumentsNot sure which model to choose?
Enter your flow and head requirements and let the pump selector find the best-fit model for you.
