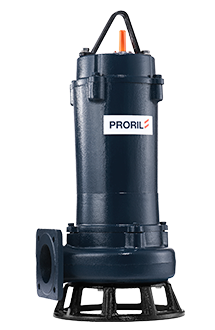

GOCUT 22
- •GOCUT322
- •Output：2.2kW/3HP
- •Outlet：3"
Designed for handling raw sewage and various wastewater treatments, the cutting mechanism shreds fibrous materials into small pieces to prevent from clogging.
Frequency
Performance Curve
Model Comparison
GOCUT 322 Datasheet | |
|---|---|
| Discharge Outlet | 80 mm (3") |
| Shaft Speed | 2850 rpm |
| Rated Output | 2.2 kW (3 HP) |
| Rated Head | 10 m (33') |
| Rated Flow | 10 L/s (158 gpm) |
| Max Head | 18 m (59') |
| Max Flow | 15 L/s (238 gpm) |
| Solid Passage | 27 mm (1.1") |
| Diameter | 482 mm (19") |
| Height | 642 mm (25.3") |
| Weight | 55 kg (121 lbs) |
