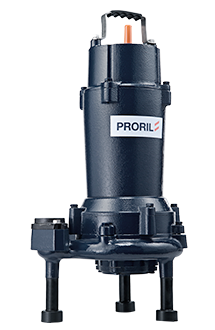

GOBITS 22
- • GOBITS 22
- • Output：2.2kW / 3HP
- • Outlet：2"
Designed for high head, GOBITS series pumps meet the demanding needs of commercial and residential sewage applications.
Frequency
Performance Curve
Model Comparison
GOBITS 22 Datasheet | |
|---|---|
| Discharge Outlet | 50 mm (2") |
| Shaft Speed | 2850 rpm |
| Rated Output | 2.2 kW (3 HP) |
| Rated Head | 15 m (49') |
| Rated Flow | 1.7 L/s (26 gpm) |
| Max Head | 25 m (82') |
| Max Flow | 3.7 L/s (58 gpm) |
| Solid Passage | 4 mm (0.2") |
| Diameter | 316 mm (12.4") |
| Height | 583 mm (23") |
| Weight | 35 kg (77 lbs) |
